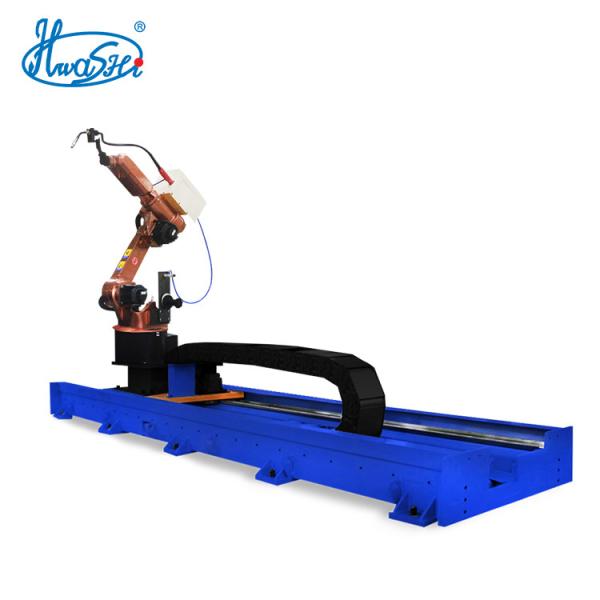

MIG TIG 6 DOF Arc Welding Robot 6 Axis AC Servo With Slideway Rail

Name: MIG TIG 6 DOF Arc Welding Robot 6 Axis AC Servo With Slideway Rail
Brand: Hwashi
Price: 10000 USD

Brand Name : Hwashi

Model Number : HS-R8-06

Certification : CCC,CE,ISO

Place of Origin : China

MOQ : 1/set

Price : $10000-20000

Payment Terms : L/C, T/T, Western Union

Delivery Time : 30 work day

Packaging Details : Wooden seaworth package

After-sales Service Provided : Engineers available to service machinery overseas

Name : Welding robot

DOF : 6

Driving Mode : AC servo

Effective Load (kg) : 6/8/10/20/50KG

Repeat Positioning Accuracy (mm) : ±0.05

Motion Range (°) : ±360

Max Speed (°/S) : 450°/S

Serve Life : 10 years

Contact Now

MIG TIG 6 DOF Arc Welding Robot 6 Axis AC Servo With Slideway Rail

Product Application

1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
